C230x19.9,C9x13.4 C shape profile steel

Share:

Product : U Channel steel, U shape steel, C shape steel, C profile steel

Standard: ASTM A6/A6M

Grade: A36, A572 Grade 50, A572 Grade 60, A992

Type : C230x19.9, C9x13.4

Size: 299x61x10.5x5.9 mm, 9.00x2.433x0.413x0.233 inch

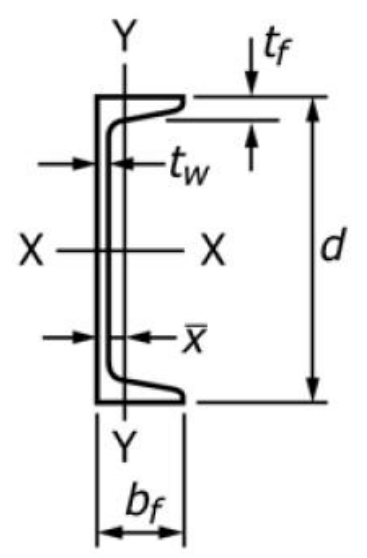

Specification in mm: Height d 299mm, width bf 61mm, web thickness tf 10.5mm, flange thickness tw 5.9mm

Specification in inch: Height d 9.00”, width bf 2.433”, web thickness tf 0.413”, flange thickness tw 0.233”

Sectional area: 2540 mm2/3.94in2

Unit weight(mass)/Meter : 19.8 kgs/M, 13.4 Lbs/ft

Length: 12M or customized

Min order quantity: 1 piece
