Product : H section steel, H beam steel, H shape steel
Standard: JIS G 3192
Grade: SS400, SM400A, SM400B, SS490, SM490A, SM490B, SM490YA, SM490YB, SN400A, SN400B, SN490B
Type : H200x200x49.9 (200x200x8x12)

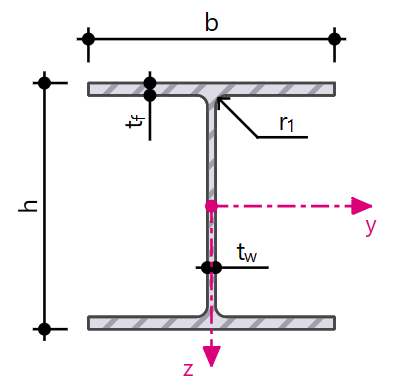

Size: Height H 200mm, width b 200mm, web thickness tw/t1 8mm, flange thickness tf/t2 12mm
Sectional area: 63.53 cm2
Unit weight(mass):49.9 kgs/M
Length: 6M, 12M or customized
Min order quantity: 1 piece
Size tolerance: Height H ±2.0mm, Width(B) ±2.0mm, web thickness tw/t1 ±0.7mm, flange thickness ±1.0mm
