Product : H section steel, H beam steel, H shape steel,
Standard: Euronorm 53-62, DIN 1025-3, EN 10365, EN 10025, EN10034,
Grade: S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S275M, S275ML, S275N, S275NL, S355JR, S355J0, S355J2, S355K2,S355M, S355ML, S355N, S355NL, S420M, S420ML, S420N, S420NL, S460M, S460ML, S460N, S460NL, S235J0W,S235J2W, S355J0WP,S355J2WP, S355J0W,S355J2W, S355K2W
Type : HEAA 120
Size: 109x120x4.2x5.5

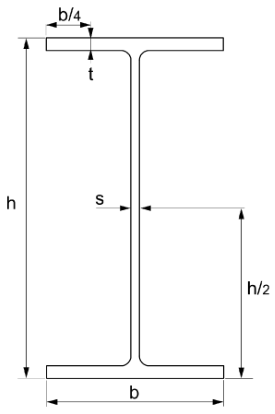

Specification: Height H 109mm, width b 120mm, web thickness S/tw 4.2mm, flange thickness t/tf 5.5mm
Sectional area: 18.6 cm2
Unit weight(mass): 14.6 kgs/M
Length: 12M or customized
Min order quantity: 1 piece
Size tolerance: Height H +3/-2mm, Width(B) +4/-2mm, web thickness S/tw ±0.7mm, flange thickness +1.5/-0.5mm
