Product : I section steel, I beam steel, I shape steel,
Standard: JIS G 3192
Grade: SS400, SM400A, SM400B, SS490, SM490A, SM490B, SM490YA, SM490YB, SN400A, SN400B, SN490B
Type : I 180x100
Size: 180x100x6x10

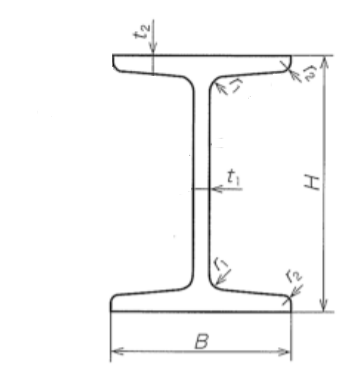

Specification: Height H 180mm, width b 100mm, web thickness t1 6mm, flange thickness t2 10mm
Sectional area: 30.06 cm2
Unit weight(mass): 23.6 kgs/M
Length: 12M or customized
Min order quantity: 1 piece
Size tolerance: Height H ±2.0mm, Width(B) ±3mm, web thickness t1 ±0.6mm, flange thickness t2 ±1mm
