Product : I section steel, I beam steel, I shape steel,
Standard: JIS G 3192
Grade: SS400, SM400A, SM400B, SS490, SM490A, SM490B, SM490YA, SM490YB, SN400A, SN400B, SN490B
Type : I 400x150
Size: 400x150x10x18

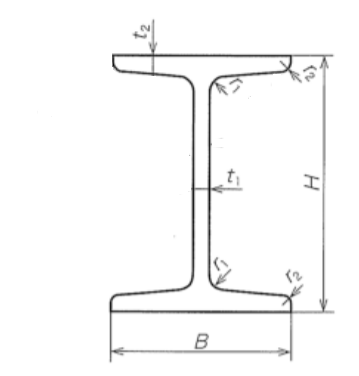

Specification: Height H 400mm, width b 150mm, web thickness t1 10mm, flange thickness t2 18mm
Sectional area: 72 cm2
Unit weight(mass): 91.73 kgs/M
Length: 12M or customized
Min order quantity: 1 piece
Size tolerance: Height H ±4.0mm, Width(B) ±3mm, web thickness t1 ±0.8mm, flange thickness t2 ±1.2mm
