Product : H section steel, H beam steel, H shape steel,
Standard: EN 10365, EN 10025, EN10034
Grade: S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S275M, S275ML, S275N, S275NL, S355JR, S355J0, S355J2, S355K2,S355M, S355ML, S355N, S355NL, S420M, S420ML, S420N, S420NL, S460M, S460ML, S460N, S460NL, S235J0W,S235J2W, S355J0WP,S355J2WP, S355J0W,S355J2W, S355K2W
Type : UB838x292x176(834.9x291.7x14x18.8)

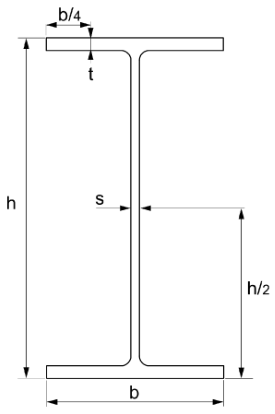

Size: Height H 834.9mm, width b 291.7mm, web thickness S/tw 14mm, flange thickness t/tf 18.8mm
Sectional area: 224 cm2
Unit weight(mass): 176 kgs/M
Length: 12M or customized
Min order quantity: 1 piece
Size tolerance: Height H ±5mm, Width(B) ±4mm, web thickness S/tw ±1.5mm, flange thickness +2.5/-1.5mm
