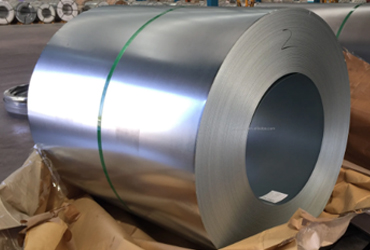

M400-50A5 Cold rolled Non-Oriented Electrical steel properties:
| Grade |
Thickness (mm) |
Max.Core 1.7/50 loss(W/kg) |
Min.Induction(T)J800 |
Min. Lamination factory |
Min. Number of Bends |
Conventional Density(kg/dm3) |
|
M400-50A5 |
0.5 |
3.30 |
1.70 |
0.97 |
5 |
7.70 |
M400-50A5 Cold rolled Non-Oriented Electrical steel typical electromagnetic properties
| Core loss(W/kg) |
Magnetic Polarization(T) |
||||||
|
P1.0/50 |
P1.5/50 |
P1.0/60 |
P1.5/60 |
J1000 |
J2500 |
J5000 |
J10000 |
|
1.35 |
3.15 |
1.74 |
4.06 |
1.52 |
1.65 |
1.72 |
1.83 |
M400-50A5 Cold rolled Non-Oriented Electrical steel typical mechanical property
| Yield strength (MPa) |
Tensile strength (MPa) |
Elongation (%) |
Vickers Hardness |
Number of bends |
Stacking factor |
||||
|
L |
C |
L |
C |
L |
C |
HV1 |
L |
C |
|
|
265 |
275 |
420 |
440 |
30 |
32 |
140 |
≥20 |
≥20 |
0.985 |
M400-50A5 Cold rolled Non-Oriented Electrical steel dimension and shape tolerances
| Nominal thickness(mm) |
Nominal thickness tolerance(mm) |
Longitudinal thickness deviation(mm) |
Width tolerance(Cut edge)(mm) |
Transverse thickness deviation(mm) |
Nominal width(mm) |
|
0.5 |
+0.020 |
+0.015 |
+0.012 |
+0.015 |
700-1260 |
M400-50A5 is a steel grade under BAOSTEEL Q/BQB standard. M400-50A5 Cold rolled Non-Oriented Electrical steel is CONVENTIONAL TYPE WW series material. If you want M400-50A5 GO Electrical steel core loss,tensile strength, coating, using, curve, or other information, please contact JOIN WIN STEEL sales team.
