Microwave Oven is a modern kitchen appliance that uses microwaves to heat food. It is composed of power, magnetron, control circuit and oven chamber. The requirements includes safety, energy-efficiency, low noise-level, uniform heating, larger capacity and easy to clean. Its developmental trend is multi-functional.

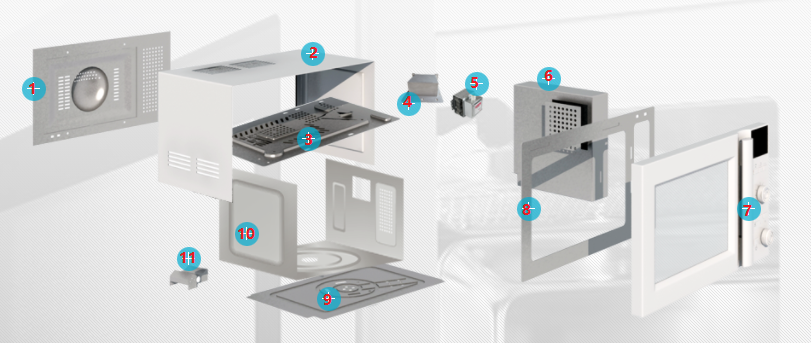

1. Back Plate
Part requirements: Flat and work well in damp environment of kitchen.
Material Requirements: Good shape, Suitable for bending.
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Specialty |
1 |
Back Plate |
General cold rolled steel |
0.5 |
Spray painting after parkerizing |
2. U Plate
Part requirements: Gloss and bright surface; Anti-bacterial; oil-resistant; Good looking and good durablity; Work well in damp environment.
Material requirements: Corrosion-resistance; Flat; Good formability.
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Specialty |
2 |
U Plate |
Hot-dip galvanized steel |
0.5 |
Spray painting after parkerizing |
3. Top Plate
Part requirements: Flat and work well in damp environment of kitchen.
Material requirements: Good shape, Suitable for bending..
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Specialty |
3 |
Top Plate |
General cold rolled steel |
0.5 |
Spray painting after parkerizing |
4. Wave guide box
Part requirements: Flat and work well in damp environment of kitchen.
Material requirements: Heat-resistant; Corrosion-resistance;Good drawing quality.
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Specialty |
4 |
Wave guide box |
General cold rolled steel |
0.5-0.6 |
Spray painting after parkerizing |
5. Magnetron
Part requirements: Magnetron convert high voltage and high magnetic field into microwave.It should work well in the damp environment of kitchen.
Material requirements: Heat-resistant; Corrosion-resistance;Good drawing quality.
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Specialty |
Suggestion |
5 |
Magnetron |
Hot-dip galvanized steel |
0.5 |
|
|
|
0.5 |
High lubricating |
Available after drawing |
6. Outer casing
Part requirements:Smooth surface;Flat and straight ;work well in the damp environment of kitchen.
Material requirements: Flat; Corrosion-resistance;Good formability quality.
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Specialty |
Suggestion |
6 |
Outer casing |
Prepainted Steel |
TSECC,TDC51D+Z |
0.45-0.5 |
|
|
Cold rolled steel |
0.5 |
|
Spray painting after parkerizing |
7. Door
Part requirements: Flat and work well in damp environment of kitchen.
Material Requirements: Good shape, Suitable for bending.
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Suggestion |
7 |
Door |
General cold rolled steel |
0.5 |
Spray painting after parkerizing |
8. Front plate
Part requirements: Flat and work well in damp environment of kitchen.
Material Requirements: Heat-resistant; Corrosion-resistance; Formability quality .
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Suggestion |
8 |
Front Plate |
General cold rolled steel |
0.5 |
Spray painting after parkerizing |
9. Base plate
Part requirements: Flat and work well in damp environment of kitchen.
Material Requirements: Heat-resistant; Corrosion-resistance; Formability quality.
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Suggestion |
9 |
Base Plate |
Hot-dip galvanized steel |
0.6 |
Available after spray painting |
10. Inner Chamber
Part requirements: Work well in hot and moist environment; Corrosion-resistance; easy to clean.
Material Requirements: Heat-resistant; Corrosion-resistance; Anti-rust; Weldability .
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Specialty |
10 |
Inner Chamber |
Hot-dip galvanized steel |
0.6 |
|
|
Cold rolled enameled steel |
0.6 |
Acid resistance; Alkaline resistance; Heat resistance; Easy to clean |
11. Turntalbe Support
Part requirements: Flat and work well in damp environment of kitchen.
Material Requirements: Heat-resistant; Corrosion-resistance; Formability quality .
Recommended materials:
Part No. |
Part No. |
Type |
Grade |
Size(mm) |
Suggestion |
11 |
Turntalbe Support |
General cold rolled steel |
0.6 |
Spray painting after parkerizing |
